Industrial Case 3

Package Substation - Scotland

The following are visualisations of the lighting design for a package substation.

light solution was acheived by using twin 36w normal and battery backed fluorescent fittings and 150W floodlights to illuminate loading areas

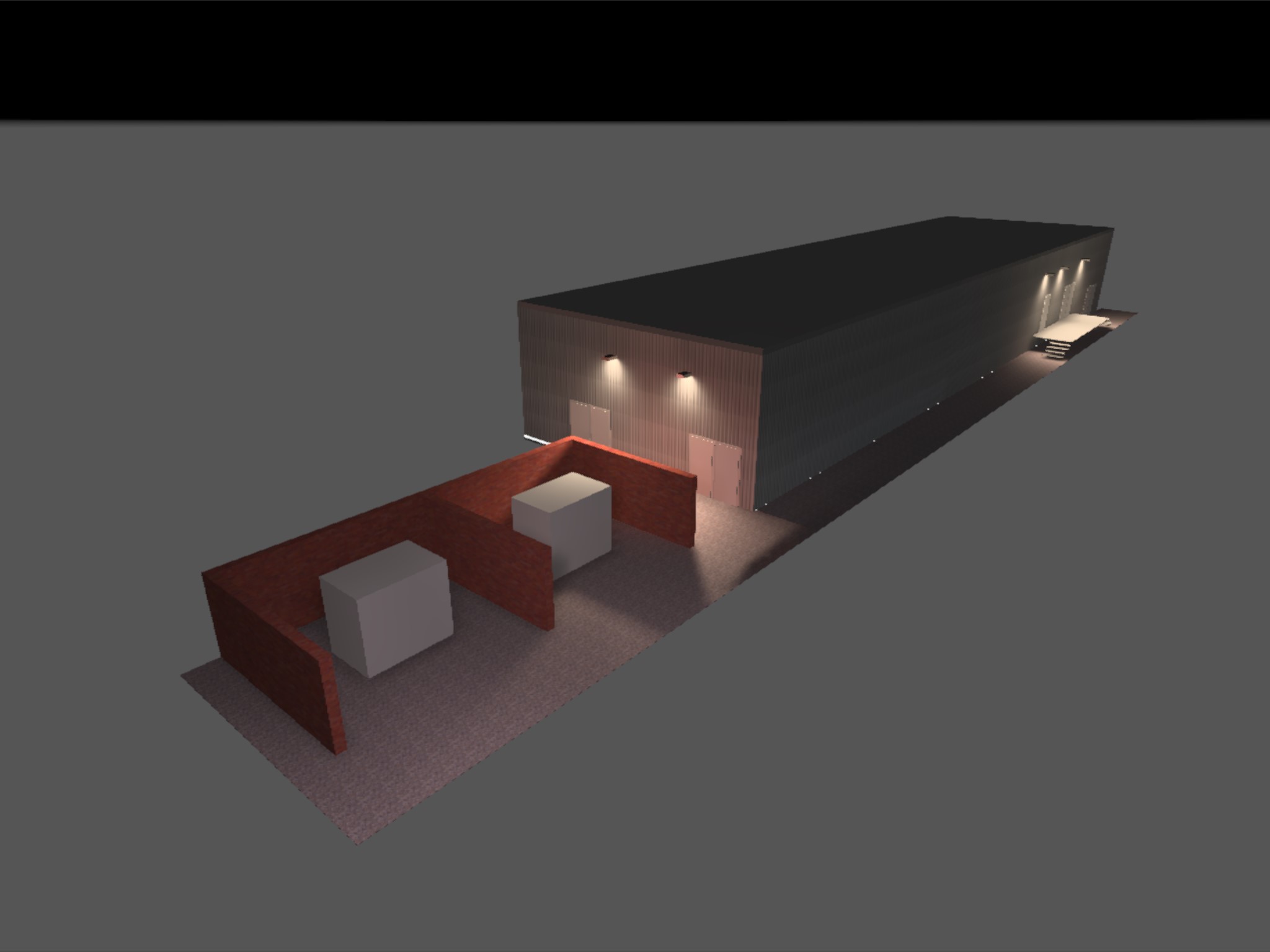

Package substation - external view 1- lighting visulisation

Package substation - external view 2 - lighting visulisation

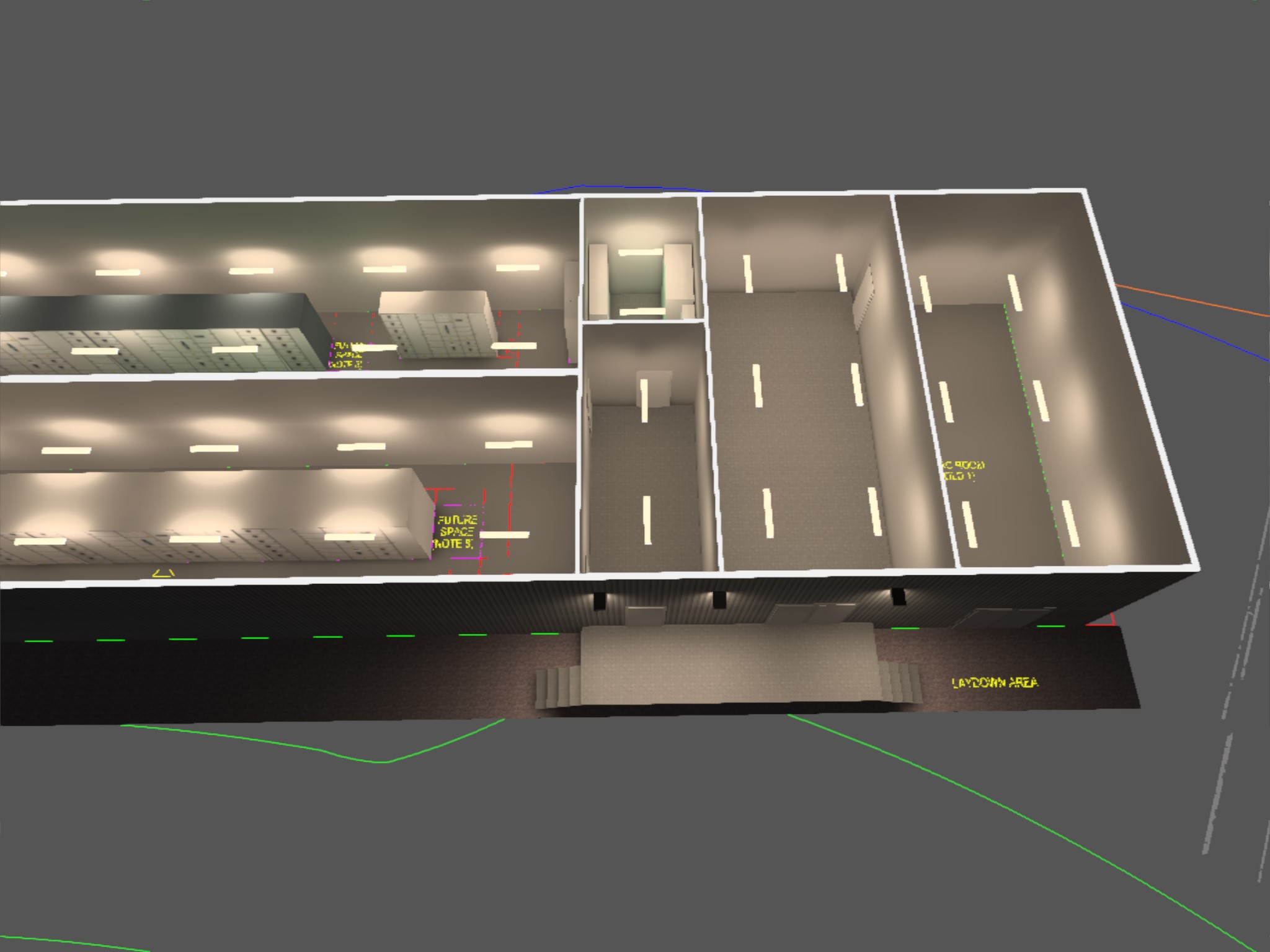

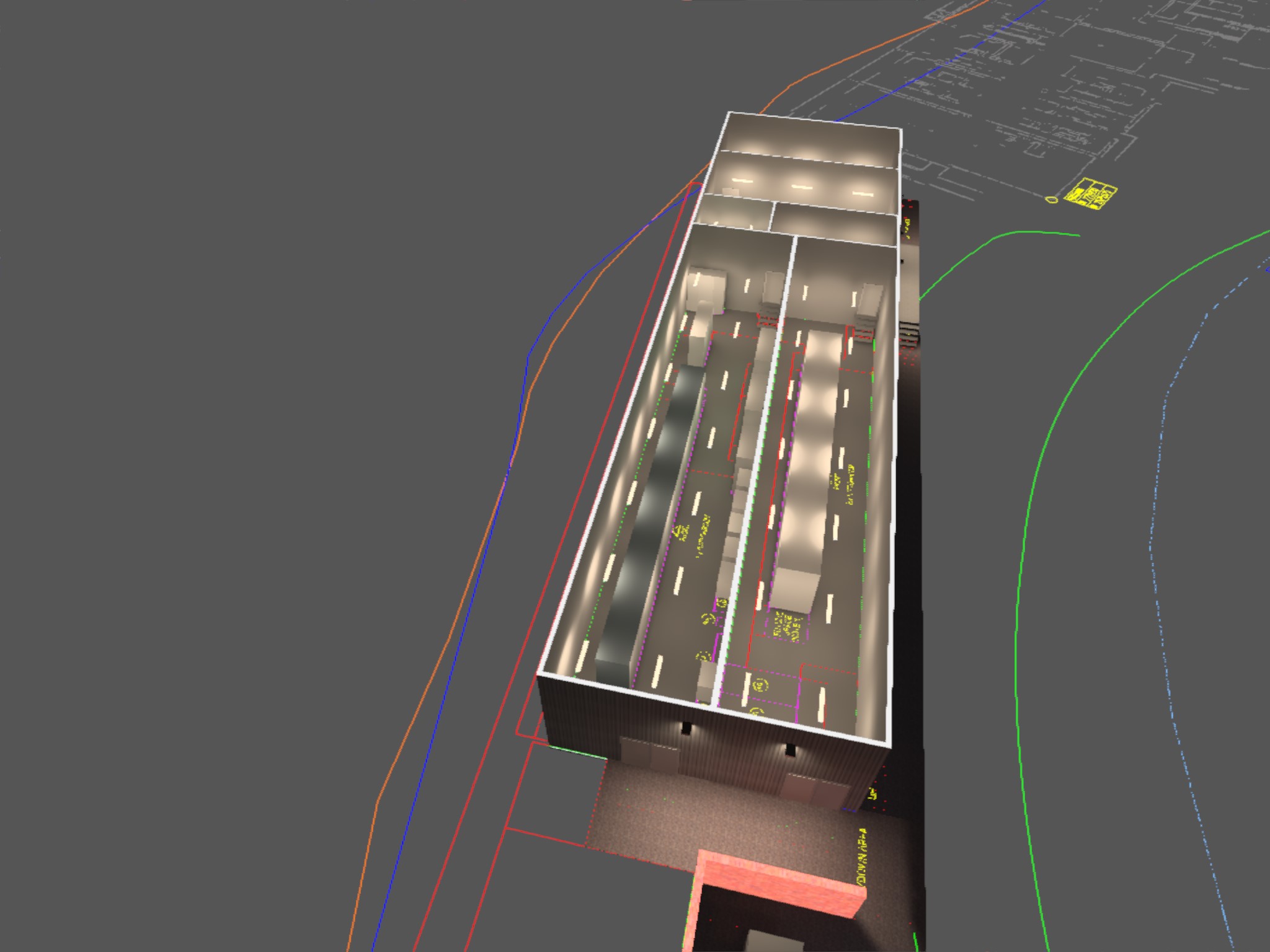

Package substation - Internal view 1- lighting visulisation

Package substation - Internal view 2 - lighting visulisation

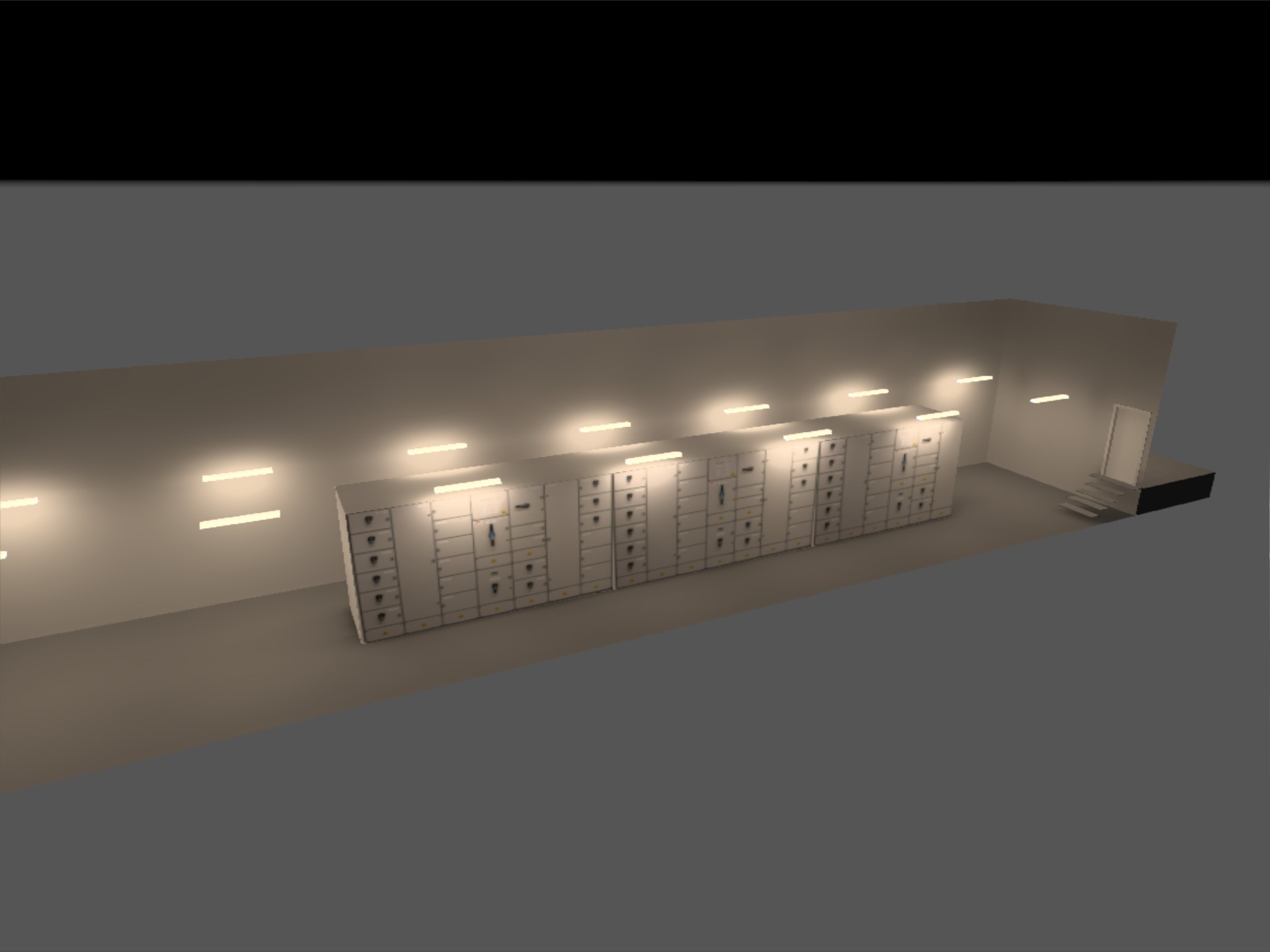

Package substation - HV Switchroom- lighting visulisation

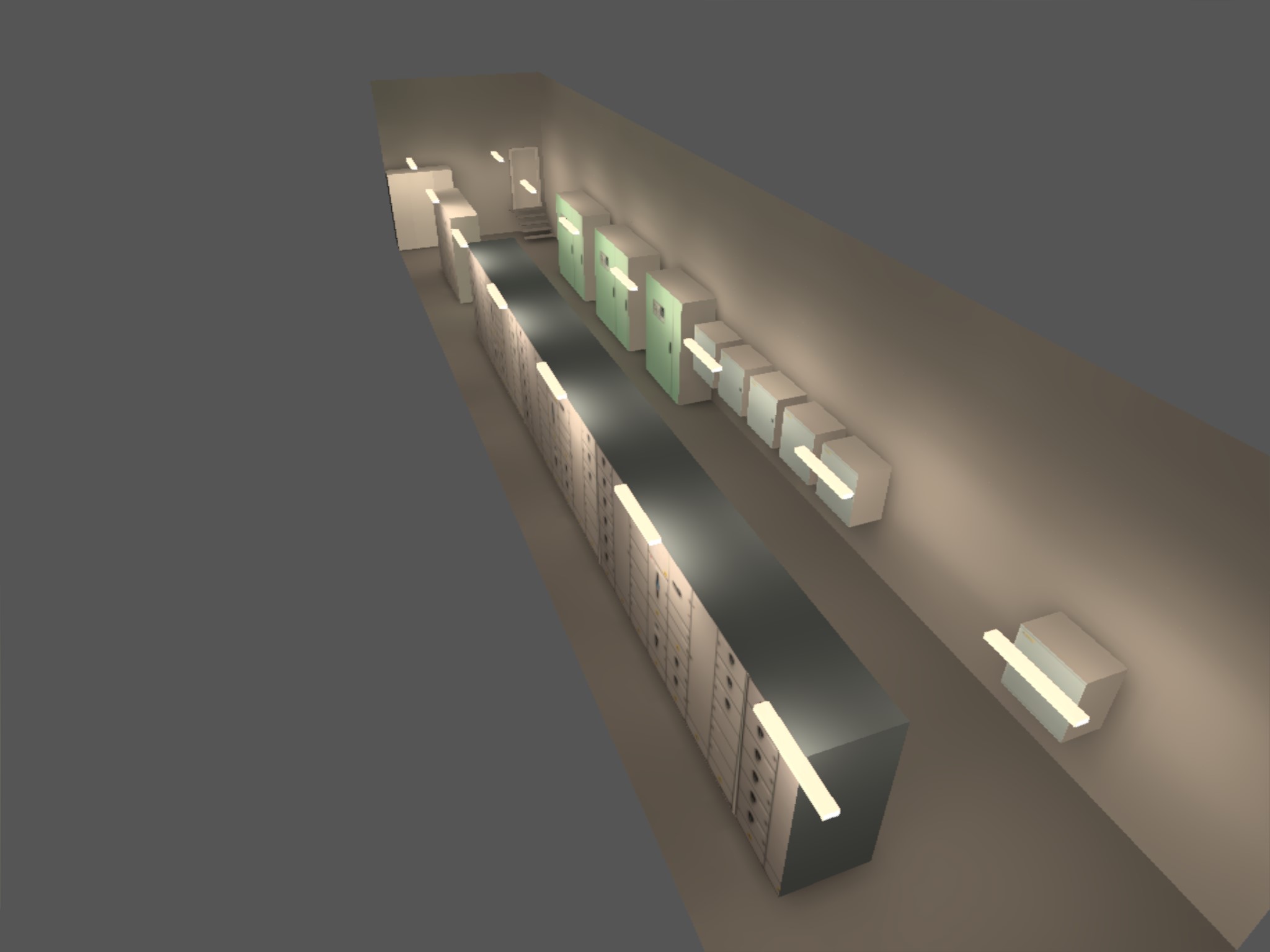

Package substation - LV Switchroom- lighting visulisation

Package substation - UPS room- lighting visulisation
