Turbine Exaust Stack

The following visualisations are for the lighting design of a 30m tall turbine exhaust with three access platforms. The exhaust is to replace an existing horizontal unit and it to be in close proximity to a heli deck.

The main design constraint was to ensure that the top of the exhaust was illuminated and the lighting schem did not blind the helicopter pilots during landing.

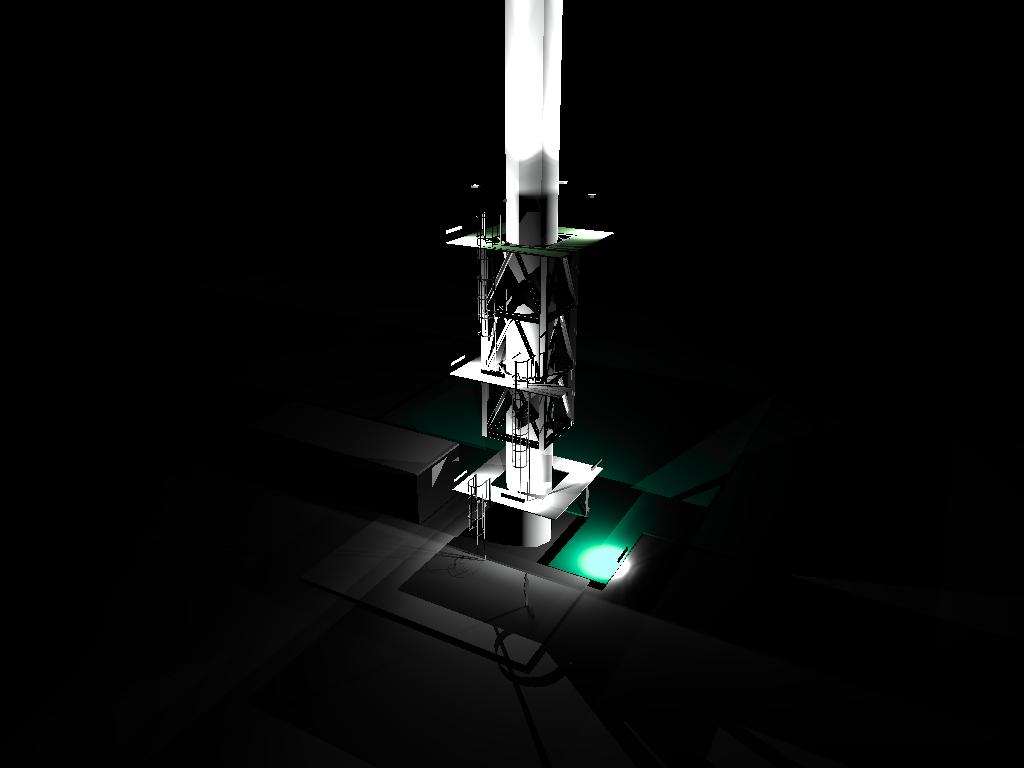

exhaust 3

exhaust 4
